Cylindrical-rotor motors

Our Z cylindrical-rotor motors perform a wide variety of industrial drive tasks – reliably and effectively. They are suitable for a broad range of applications, offering outstanding performance:

motor output up to 45 kW
inverter-fed drives for travel applications, line-fed travel and continuous operation
specially designed to match our range of gearboxes
simple project engineering
high drive efficiency
software tools to calculate drive requirements according to specified physical characteristics at www.drives.demagcranes.com.

More information

The benefits at a glance

Motor and gearbox combinations

Technical data

For outputs up to 45 kW: 4-pole Z motors

Designation ZBA = braked ZNA = no brake	Output [kW] 60% CDF 60 °C temp.
ZBA/ZNA 63 B4	0.18
ZBA/ZNA 71 A4	0.25
ZBA/ZNA 71 B4	0.37
ZBA/ZNA 80 A4	0.55
ZBA/ZNA 80 B4	0.75
ZBA/ZNA 90 A4	1.1
ZBA/ZNA 90 B4	1.5
ZBA/ZNA 100 AL4	2.2
ZBA/ZNA 100 B4	3
ZBA/ZNA 112 A4	4
ZBA/ZNA 132 AL4	5.5
ZBA/ZNA 132 B4	7.5
ZBA/ZNA 132 B4	9.5
ZBA/ZNA 160 AL4	11
ZBA/ZNA 160 B4	15
ZBA/ZNA 180 A4	18.5
ZBA/ZNA 180 B4	22
ZBA/ZNA 200 A4	30
ZBA/ZNA225 AL4	37
ZBA/ZNA 225 B4	45

Efficiency to IE2: 4-pole ZBE/ZNE motors

Designation ZBE = braked ZNE = no brake	Output [kW] 100 % CDF 40 °C temp.	Efficiency [%]
Designation ZBE = braked ZNE = no brake	Output [kW] 100 % CDF 40 °C temp.	η50	η75	η100
ZBE/ZNE 63 B4	0.18	66.5	71.2	72.1
ZBE/ZNE 71 A4	0.25	69.5	74.0	74.9
ZBE/ZNE 80 A4	0.55	78.0	78.3	78,1
ZBE/ZNE 80 B4	0.75	79.3	82.2	79.6
ZBE/ZNE 90 A4	1.1	79.8	82.3	81.4
ZBE/ZNE 90 B4	1.5	82.1	83.4	82.8
ZBE/ZNE 100 A4	2.2	83.8	84.9	84.3
ZBE/ZNE 100 B4	3	83.6	86.4	85.5
ZBE/ZNE 112 A4	4	86	87.4	86.6
ZBE/ZNE 132 A4	5.5	87.2	88.3	87.7
ZBE/ZNE 132 B4 *	7.5	87.5	90.3	88.7
ZBE/ZNE 160 A4 *	11	89	90.8	89.8
ZBE/ZNE 160 B4 *	15	89.2	91.8	90.6
ZBE/ZNE 180 A4 *	18.5	89.3	92.4	91.2
ZBE/ZNE 180 B4 *	22	89.2	92.3	91.6
ZBE/ZNE 200 A4 *	30	88.4	92.8	92.3
ZBE/ZNE 225 A4 *	37	90.8	93.2	92.7
ZBE/ZNE 225 B4 *	45	92.2	93.5	93.1

* only for operation with frequency inverter

Line-fed travel applications: 8/2-pole ZBF motors

Designation	Output [kW] 40/40% CDF, 40 °C temp.
ZBF 63 A 8/2	0.06/0.25
ZBF 71 A 8/2	0.09/0.34
ZBF 80 A 8/2	0.13/0.5
ZBF 90 B 8/2	0.2/0.8
ZBF 100 A 8/2	0.29/1.2
ZBF 112 A 8/2	0.46/1.9
ZBF 132 A 8/2	0.72/2.9
ZBF 132 B 8/2	0.88/3.5

Downloads

Where to find us

24h Service Hotline

+30 694 913 4394

HEADQUARTERS

+30 210 5555419

Enquire Now

Top

We Can Handle It.

About us

Cranes

Drives

Components

KBK light crane system

Load handling attachments and lifting accessories

Hoist units

A

B

C

D

E

F

K

L

M

O

P

R

T

Z

A - H

I - R

S - Z

Cylindrical-rotor motors

More information

The benefits at a glance

Strong motor output

Customised braking performance

Many further options and accessories

Optimum support for project engineering and design work

Motor and gearbox combinations

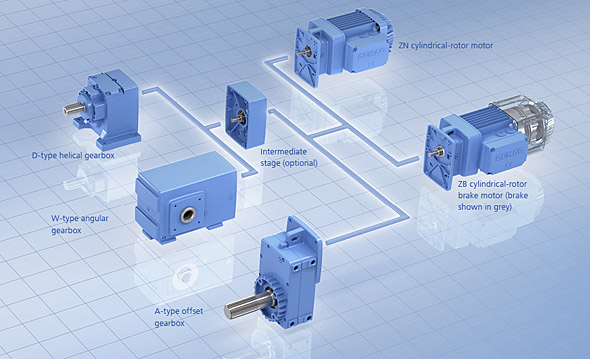

Direct drive input

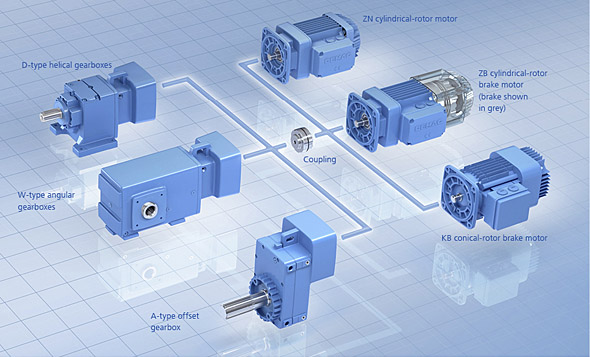

Coupling connection
